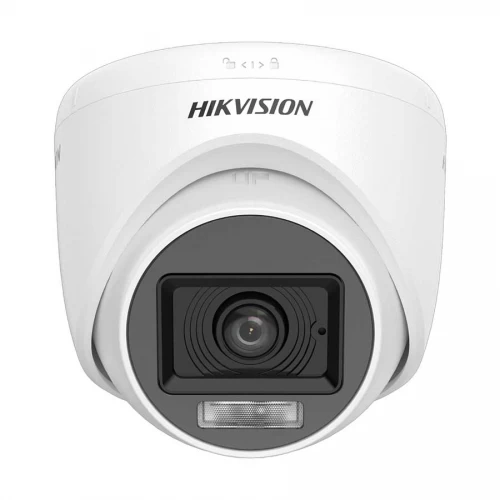

Model: DS-2CE76D0T-LPFS High-quality imaging with 2 MP, 1920 × 1080 resolution 2.8 mm, 3.6 mm fixed focal lens Up to 20 m IR distance for bright night imaging High-quality audio with audio over coaxial cable, built-in mic Read more
| General | ||
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25% | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s | |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| IR Distance | Up to 20 m IR distance for bright night imaging | |
| Lens | ||
| Lens Type | 2.8 mm, 3.6 mm fixed focal lens | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° | |
| Max Aperture | F1.2 | |
| Video | ||
| Resolution | 1920 × 1080 | |
| Day/Night | ICR | |
| Interface | ||
| Video Interface | Switchable TVI/AHD/CVI/CVBS | |
| Warranty | ||
| Warranty | 01 year warranty | |
| Specifications | Descriptions |
|---|---|
| No Specifications | |
